Nikon FN1 (FLAME)

Overview

Nikon FN1 developed especially for electrophysiological research, features enhanced operability to facilitate experiments.

This equipment was funded by [BBSRC, 2020], please reference the funder and [BB/T017627/1], in your publication

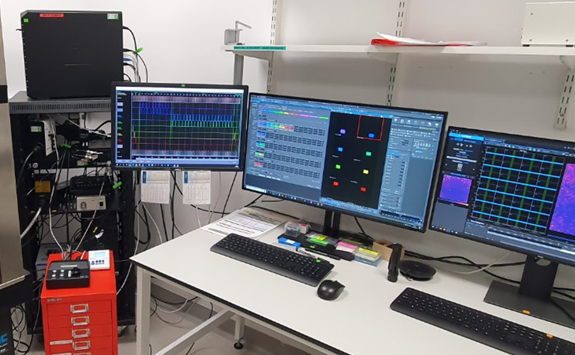

The Nikon FN1 in the FLAME facility has been designed to allow maximum flexibility for different kind of imaging experiments coupled (or not) with the two other main components of the system: the BioCam Duplex MEA system and the Polygon 1000 patterned illuminator. Depending on the experimental design these components can be added, removed, or modified by the facility staff.

The system is run through Nikon’s versatile Elements-JOBS software package and incorporates wizards to allow the automated capture and analysis of both fluorescence and colour images.

Imaging modes

  • Multi point x,y (2D) with tiling
  • Volume x,y,z (3D)
  • Time lapse x,y,z,t (4D)
  • Fluorescence
  • DIC
  • Brightfield imaging
  • Live Cell imaging

Specification

Objectives

Magnification

NA

Coverslips

Other modes

Immersion

2 0.1     Air
4 0.2     Air
10 0.3    DIC Water Dipping
16 0.8    DIC Water Dipping
20 0.45     Air
40 0.8    DIC Water Dipping
60 1   DIC Water Dipping

Filters (epi)

CubeExample fluorophoresExcitationDichroicEmissionPart Number
Chrome 89402 DAPI/FITC/TRITC/Cy5

375-407

466-495

542-566

623-653

413

500

573

660

418-450

506-531

577-609

665-724


Chroma 89403 CFP/YFP/RFP/Cy7

422-450

496-518

565-589

458

524

598

462-486

528-552

708-752


Chroma 49053 DAPI 350-420 425 440-480
Chroma 49001  CFP 426-446  455 460-500
Chroma 49002  GFP/FITC/Cy2 450-490  495  500-550
Chroma 49003 YFP  490-510 515  520-550
Chroma 49004 Cy3/TRITC/  532-557  565 570-640
Chroma 49008  mCherry/Texas red 540-580  585 593-668
Chroma 49009  Cy5/AF647  625-655 660  665-715
Chroma 49007

 Cy7/AF750

 560-584 590  598-660
Chroma 79002 Fura 2/BCECF (ratiometric)

335-350

375-390

426-446

490-500

 510 520-560

Light source

CoolLed pE800

CoolLed pE340

Detectors (cameras, PMTs)

Photometric Prime BSI express.



Location

FLAME facility, Ground floor Cookson Building, Medical School, IoN G.32 / 2.010

Medical School
Newcastle University
Newcastle Upon Tyne
NE2 4HH
