Zeiss CellDiscoverer7
Zeiss CellDiscoverer7
Modalities: widefield, live cell, high content, long time-lapse
Overview
Automated Microscope for live cell imaging.
Our flagship high content system running Zeiss’ Zen software suite is a fully automated widefield microscope system complete with 40 place room temperature and 40 place incubated plate storage system with integrated robotic loader and scheduling system. Using a combination of air and water immersion lenses and a multi wavelength LED illumination system the CD7 allows for automated multiplate and multi slide imaging captured on a highly sensitive Hamamatsu Fusion sCMOS camera. The system also allows for a conditional or guided acquisition experiment to be designed and automatically analysed, further increasing the automation possibilities for large scale plate or slide arrays.

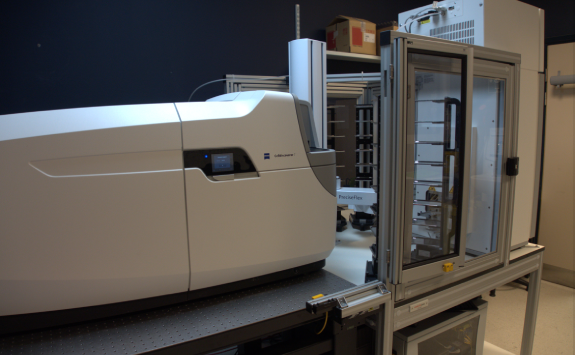

![CD 7 CD 7](/media/wwwnclacuk/bioimaging/P1012055 - CD7 -1.jpg)
Specification
Objectives
Magnification |
NA |
Coverslip |
Other modes |
Immersion |
5 | 0.35 | 0.17 | Air | |
20 | 0.7 | 0.17 | Air | |
50 | 1.2 | 0.17 | Air |
Filters (epi)
Cube |
Example fluorophores |
Excitation |
Dichroic |
Emission |
Part number |
Zeiss 49 | DAPI, Hoechst | 335-385 | 395 | 420-470 | |
Zeiss 38 HE |
GFP, FITC, AF488 | 450-490 | 495 | 500-550 | |
Zeiss 91 HE LED |
AF594/AF532/CFP/mCherry | 450, 538, 610 | 457-477, 545-566, 617-765 | ||
Zeiss 90 HE LED |
DAPI/FITC/AF458/AF647 | 450, 493, 575, 653 | 410-440, 499-529, 580-604, 659-759 | ||
Zeiss 568 |
AF568/mCherry/TRITC | 574-631 | |||
Zeiss 647 |
AF647 | 765-885 |
Light Source (Epi)
Colibri 7 LED (358/30; 423/44; 469/38; 511/44; 567/30; 590/27; 625/33
Camera
Monochrome CCD Zeiss 506
Monochrome sCMOS Hamamatsu Fusion
Location
Leech Building, M2.154
Medical School
Newcastle University
Newcastle upon Tyne
NE2 4HH
Enter your postcode or address to find directions
Booking
Find out how to book this microscope.
Booking information
- The minimal booking time for this system is 30 minutes.
- Time increments of 15 minutes are permitted.
- Bookings can be cancelled with no charge up to an hour before scheduled use.
