Zeiss LSM800

Modalities: invert, confocal, live cell, airyscan

Overview

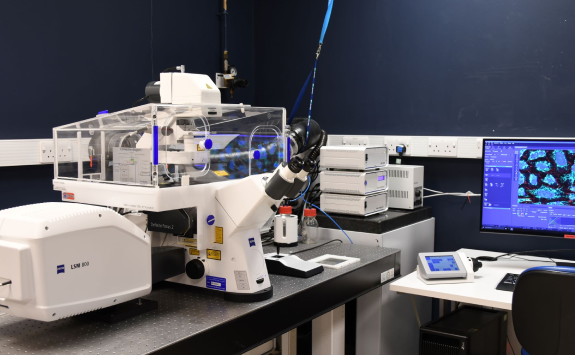

The microscope employs software and hardware autofocus correction and is fully-enclosed in a heated environmental chamber with the ability to set, maintain and monitor temperature, humidity, O2 and CO2 levels as imaging conditions dictate.

The system is run through Zeiss’ Zen software package.

Imaging modes

  • Multipoint x,y with tiling (2D)
  • Volume x,y,z (3D)
  • Fluorescence
  • DIC
  • Time-lapse x,y,z,t (4D)
  • Z-stack and multi-color imaging of cell cultures, living sections, organs.
  • Imaging + electrophysiology combining mode
  • SuperResolution (AiryScan)

Specification

Here you can find the specifications for this microscope.

Objectives

Magnification

NA

Coverslip

Other modes

Immersion

5 0.16     Air
10 0.3 0.17   Air
10 0.45 0.17   Air
20 0.7 0.17 DIC Air
20 0.8     Air
25 0.8 0.17   Multi
40 1.3 0.17   Oil
63 1.4 0.17  DIC Oil
100 1.4 0.17   Oil

Filters (epi)

Cube

Example fluorophores

Excitation

Dichroic

Emission

Part number

Zeiss 49 DAPI, Hoechst 335-385  395 420-470

Zeiss 38 HE

GFP, FITC, AF488 450-490 495 500-550
 Zeiss 43 HE CY5, AF647  625-645 660 675-715


Light source (epi)

HXP120 - Broad spectrum fluorescent light

Laser lines

405nm, 488nm, 561nm, 640nm

Detectors and Cameras

GaAsP and AiryScan

Location

Leech Building, M2.143

Medical School
Newcastle University
Newcastle upon Tyne
NE2 4HH

Booking

Booking information

  • The minimal booking time for this system is 30 minutes.
  • Time increments of 15 minutes are permitted.
  • Bookings can be cancelled with no charge up to an hour before scheduled use.

Training video

This tutorial video shows you how to operate the microscope including start-up, software introduction, image capture, cleaning procedure and shutdown.
